Linear Blade PCB Singulation Machine , Singulating Process Without Vibrations


Linear Blade PCB Singulation Machine , Singulating Process Without Vibrations

The most professional PCB singulation machine manufacturer in China.

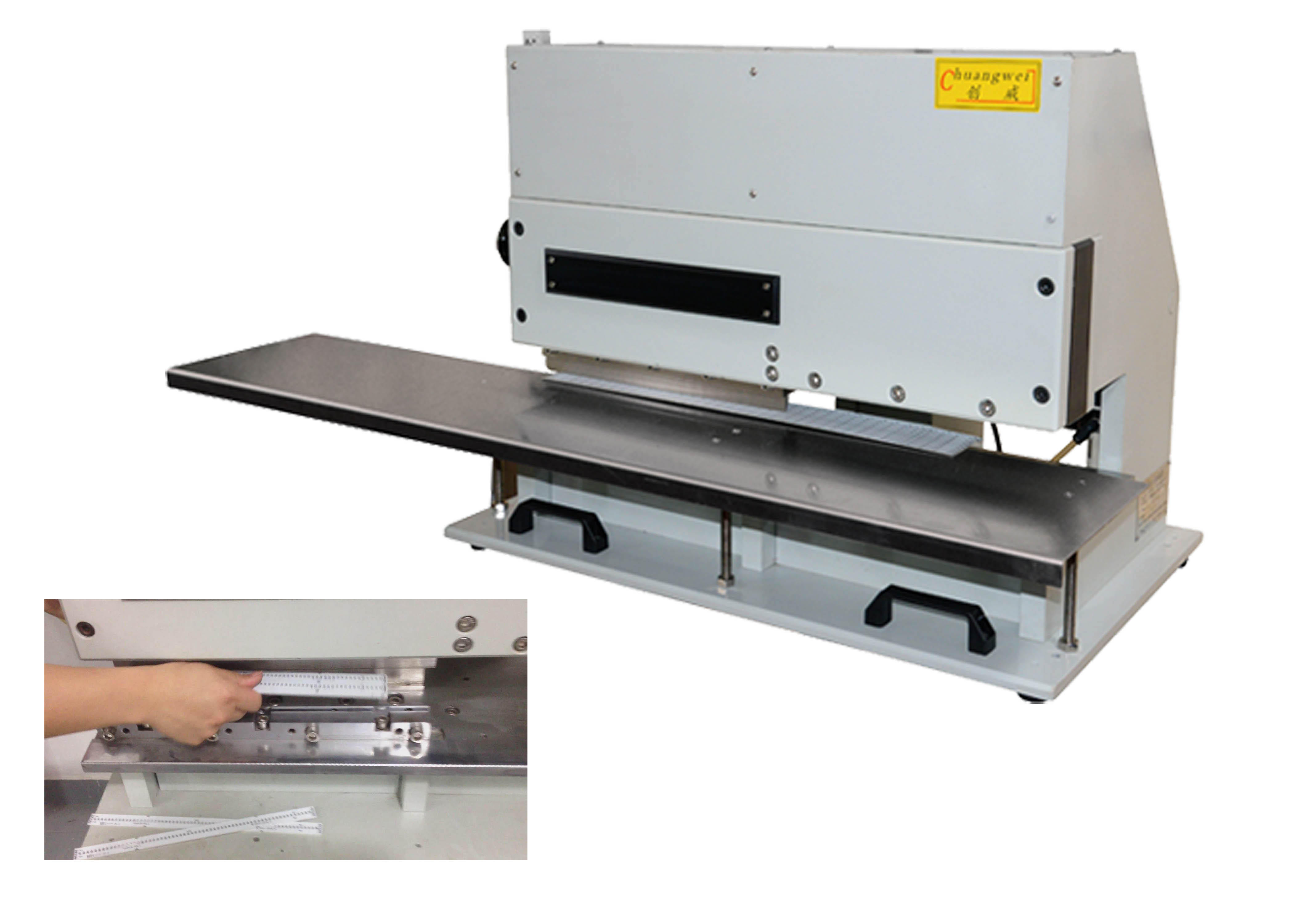

V-CUT PCB singulation machine

1.Max. PCB singulation length is unlimted
2.Singulation PCB without bending and tension stress
3.Safety use, easy operation
4.Singulating process without vibrations

V-CUT PCB singulation machine specifications:



V-CUT PCB singulation machine features:

1.The machine was designed to singulate pre-scored PCB carefully, without bending and tension stress.
2.Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the singulating process, or thin board even to 0.3mm can be worked safely.
3.Singulating  process without vibrations.
4.PCB singulating control method is by pneumatic-driven and electromagnetic valve.
5.PCB control operation is that operator stamps the foot pedal to singulate PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.

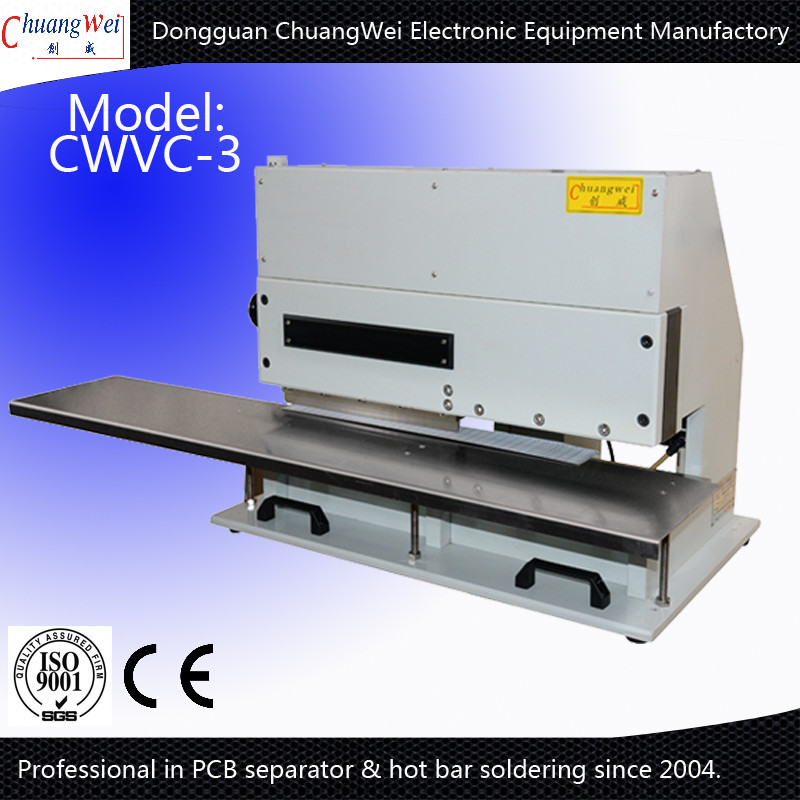

***V-CUT PCB singulation machine operation video please  see below:   (CWVC-3)***
http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be    (For 1.2 meter aluminium PCB  CWVC-3 )
http://v.youku.com/v_show/id_XNTkxMTU0MDAw.html

  ***V-CUT PCB singulation machine operation video please  see below:   (CWVC-3)***
http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be    (For 1.2 meter aluminium PCB  CWVC-3 )
http://v.youku.com/v_show/id_XNTkxMTU0MDAw.html

***Any interest please contact us freely.
***Chuangwei PCB singulation machine***
