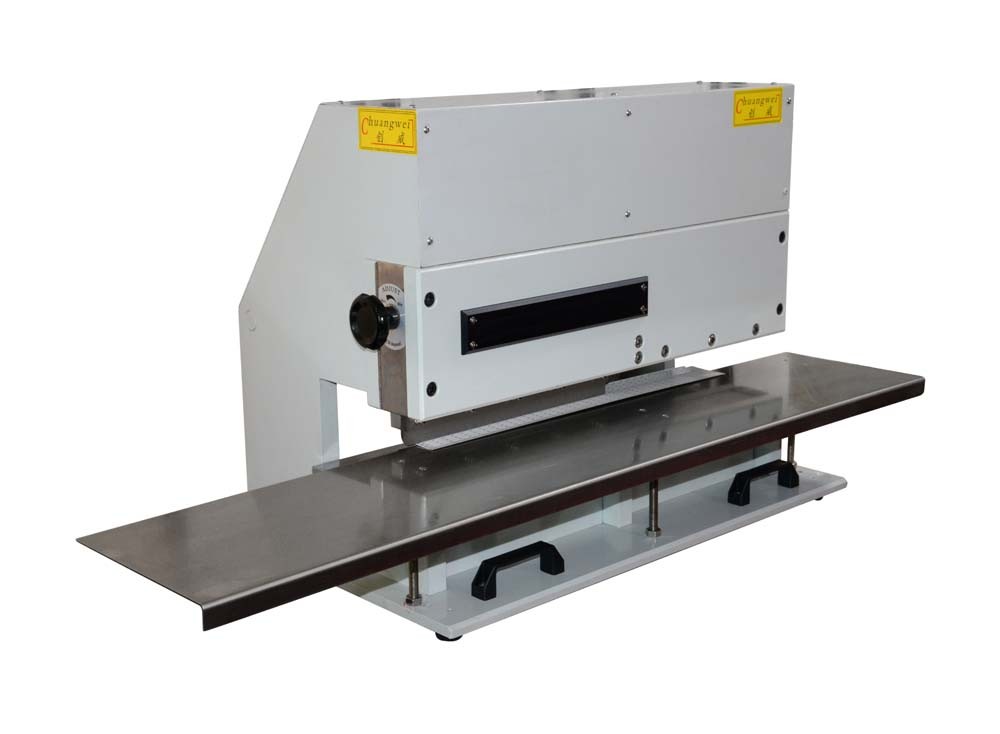

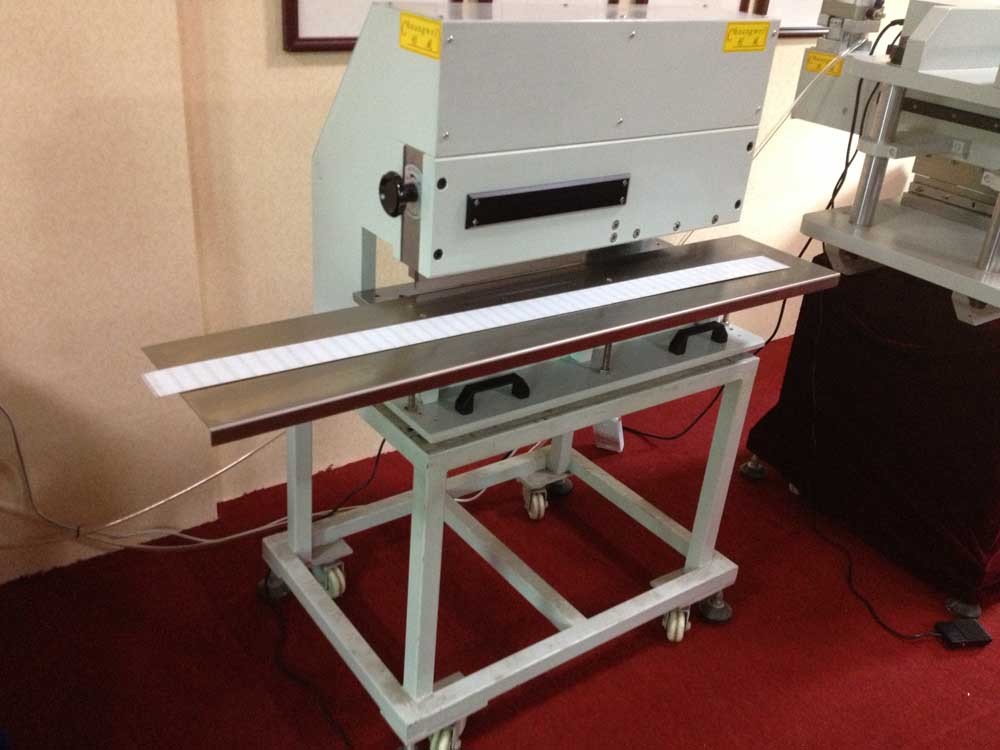

40mm Components Height Pcb Depaneling Machine With Two High Speed Steel Blades CWVC-3 Details:
1. Place of Origin: Guangdong, China (Mainland)
2. Brand Name: chuangwei pcb depaneling
3. Model Number: CWVC-3 pcb depaneling
4. Packing: plywooden case
5. Cutting board: cut PCB/LED/FR4 board
6. Thickness: 0.5-3.5mm
7. Weight: 220KG
8. Payment term: T/T or L/C
Specifications:
Model: | CWVC-3 |
The Longest Minimize: | unlimted |
Size: | 780mmx500mmx620mm |
Minimize Thickness: | 0.3-3.5mm |
Working Area: | 330*220mm |
Machine Weight: | 185Kg |
Features:
1. Cut any length metal board more safety and easily.
2. Separates long boards directly,without turn direction .
3. Separates boards up to 2.0mm thick Metal Board
4. Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors
5. Operator foolproof! Panels cannot be inserted into the knives except on the score line
6. Handles high components up to50mm
7. Bow waves that can occur with round knives are avoided
8. Easy adjusting of distance between knives
Why us
Engineers are available to be sent to freign countries to do machinery training and offer technical support |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers |
Our mission |
Our Vision: |
Competitive Advantage:
1. CWVC-3 Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme.
CE certification:
