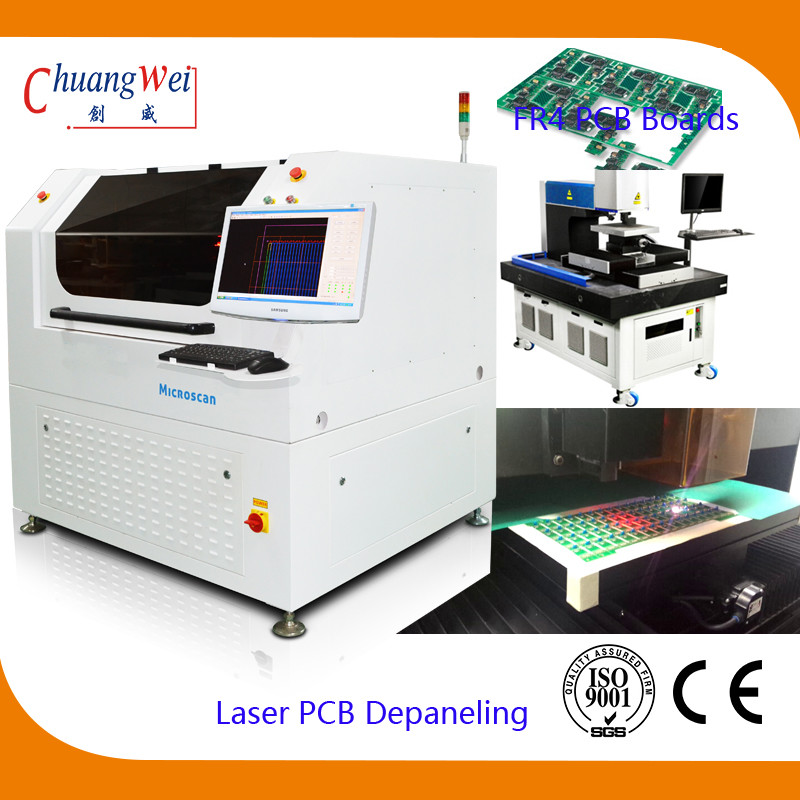

Laser PCB Cutting Machine Laser Depaneling Worked for 600*450mm PCB
Specification
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Power | 10W/12W/15W/17W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 460mmX460mm(Customizable) |
| Laser Scanning Speed | 2500mm/s (max) |
| Galvanometer Working Field Per One Process | 40mmх40mm |
Advantages
High precision CCD automatic positioning, automatic focusing. Fast and accurate
positioning, save time and no worries.
Friendly interface,Simple operation, easy to use, free application; Small size, Save more
space; rigorous security design;
Reduce energy consumption, Cost savings.
Cost-effective, fast cutting speed, stable performance
