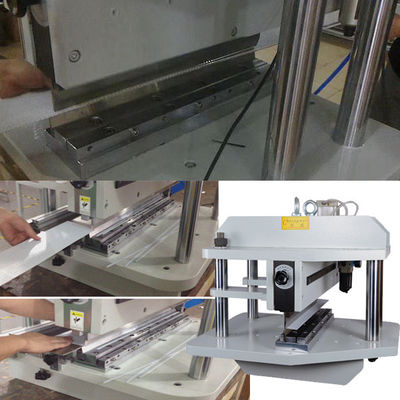

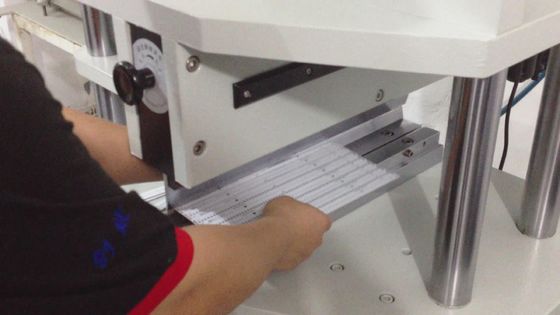

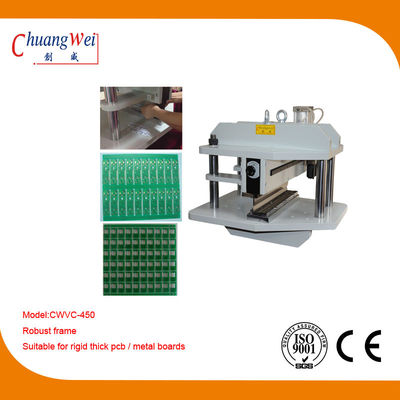

Two Linear Blades V - Cut PCB Separator To Cutting Rigid And Thick Metal Circuit Board
V-CUT PCB separator machine:
1. Nice for separating v cut metal board,Aluminium PCB,LED strip,Copper PCB etc.
2. Separate rigid and thick board fluently.
3. Use pneumatic-driven and electromagnetic valve to operate.
V-CUT PCB separator machine specifications:
| Model | CWVC-450 |
| Linear Blades length | 450mm(Can custom made) |
| Material of blades | high speed steel |
| Max.PCB separating length | unlimted |
| PCB separating thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB separating speed | due to operator skilled level |
| PCB separator machine size | 900*760*750 |
| PCB separator machine weight | 475kg |
V-CUT PCB separator machine features:
1. New style rigid machine structure design,separate any length rigid and thick metal board more safely and easily.
2. Separate long boards directly,without turning PCB direction.
3. Separating process without vibrations due to pneumatic drive unit.
4. Separating PCB without bending and tension stress.
5. PCB control operation is that operator stamps the foot pedal to separate PCB.
6. Highest components near the v groove of PCB can be up to 50mm.
7. Gap for insertion of PCB can be easy to adjust.
