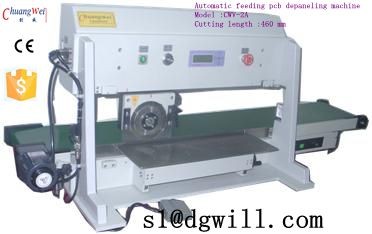

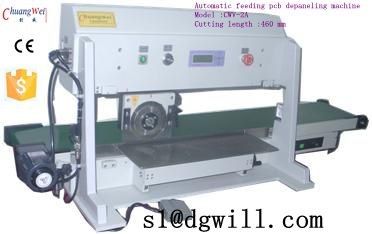

Automatic Board Separating PCB Depaneling Equipment CE Approved
pcb separating specification :
| pcb separating machine size | 880mm X 460mm X 560mm |
| pcb cutting length | 460 mm |
| pcb separating machine weight | 185 kg |
| pcb cutting thickness | 0.6-3.5 mm |
| pcb cutting speed | 100 / 200 / 300 / 500 mm /s |
Features :
1 . Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5 . Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and
angle are adjustable
7 . Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
9. three eletric eye
